AWS NAT Gateway: A Quick and Easy Guide for New User

Blog Image

Written by Vaibhav Umarvaishya

Share This Blog


With more and more workloads moving to the cloud, network traffic security and management is becoming a fundamental aspect of cloud architecture. Workloads are typically executed by companies within private subnets that should not be directly exposed to the internet due to security concerns. Nonetheless, these resources must still have internet connectivity for software updates, patching, or integration with external services.

Enters AWS NAT Gateway, a managed Network Address Translation (NAT) service that provides instances in a private subnet access to the internet or other AWS services while blocking inbound traffic from the internet.

Who Uses AWS NAT Gateway?

Enterprises with Stringent Security Regulations

Large financial, healthcare, e-commerce, and government organizations utilize NAT Gateway to provide external Internet access to internal systems while ensuring isolation from the internet on the incoming side.

1.SMBs and Startups

Small businesses take advantage of NAT Gateway to make network operations easier without investing in complicated security appliances.

2.DevOps and Cloud Engineers

In charge of private subnets and hybrid cloud infrastructure, DevOps uses NAT Gateway to provide internet-bound communication for patches, updates, and third-party API calls.

3.Security Teams

Use NAT Gateway to provide secured internet access with blocking of unsolicited incoming traffic, thereby lessening attack surfaces.

Example
A health organization operates sensitive applications processing healthcare data in private subnets of a HIPAA-compliant VPC. They use NAT Gateway to enable the instances to access OS patches and updates without leaving them open to inbound internet risks.

What is AWS NAT Gateway?

AWS NAT Gateway is a managed, highly available Network Address Translation (NAT) service that enables instances in private subnets to create outbound internet connections, without letting the internet make inbound connections to the instances.

It does so by mapping instances' private IP addresses to the public IP address of the NAT Gateway, therefore hiding private resources from direct internet exposure.

Key Features and Benefits

  • Managed Service: Comprehensively managed by AWS, minimizing operational burden.
  • High Availability: NAT Gateway is highly available in an Availability Zone (AZ). For AZ redundancy, you deploy multiple NAT Gateways.
  • Elastic Scalability: Scales automatically up to 45 Gbps (per NAT Gateway) with no human intervention required.
  • Cost-Effective for Scale: Pay-as-you-use pricing with per-hour and per-GB data processing charges.
  • Secure Outbound Connectivity: Secures outbound-only internet connectivity, concealing private instances from inbound access.
  • Simplified Network Address Translation: No manual management of EC2-based NAT instances, route tables, or security groups is needed.

AWS NAT Gateway vs. NAT Instance

Feature

AWS NAT Gateway

NAT Instance

Managed

Fully managed by AWS

Self-managed (admin effort needed)

Scalability

Automatically scales up to 45 Gbps

Manual scaling (EC2 instance type/size)

High Availability

Highly available within AZ

Must be manually configured (Auto Scaling, failover)

Security Patches

Managed by AWS

Must be manually patched

Cost

Pay per GB processed and hourly

EC2 instance cost + bandwidth + maintenance

Example
An e-commerce business transitioned from NAT instances to NAT Gateway, cutting manual maintenance work by 80%, enhancing throughput, and making high availability configuration easier.

When to Use AWS NAT Gateway

1.Private Subnets Require Internet Access

When you have private subnets with instances that require downloading packages, accessing APIs, or accessing AWS services without exposing them to the public.

2.Simplify NAT Management

If you would rather not be responsible for managing NAT instances, scaling, or failover scenarios, NAT Gateway is the best-managed solution.

3.High Bandwidth Requirements

Where your workloads need high levels of throughput, NAT Gateway automatically scales up to 45 Gbps per AZ.

4.Increased Security

Use NAT Gateway where you want one-way access to the internet and prevent any inbound access to your workloads.

Adoption Best Practices

1.Deploy NAT Gateway in Each AZ

To ensure high availability, create one NAT Gateway per AZ and configure route tables accordingly.

2.Use VPC Endpoints When Possible

For services like S3 or DynamoDB, use VPC Endpoints to avoid unnecessary NAT Gateway data charges.

3.Monitor and Optimize Costs

Monitor NAT Gateway data processing costs via CloudWatch metrics and Cost Explorer.

Example
A telecom company with workloads running within private subnets in multiple AZs used NAT Gateways in each AZ for redundant internet access without cross-AZ data transfer fees.

Where Does AWS NAT Gateway Fit in AWS Architectures?

AWS NAT Gateway generally fits into VPC architectures in which security, isolation, and controlled outbound internet access are concerned.

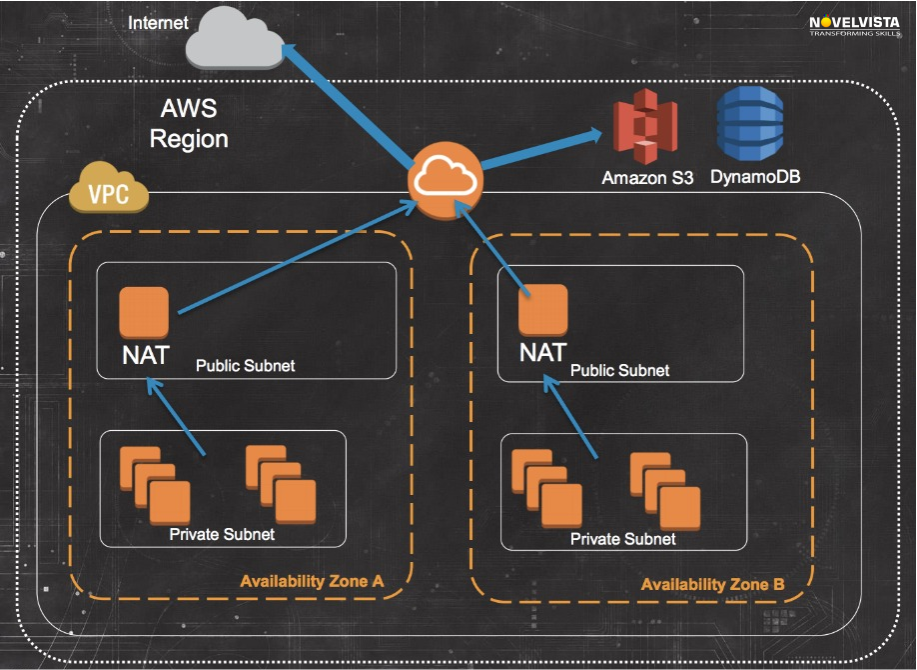

Architectural Patterns

Private Subnets with Public Subnet Routing

NAT Gateway is located in a public subnet, and private subnet route tables send outbound traffic through it.

High Availability and Multi-AZ Design

For fault tolerance, use multiple NAT Gateways, one per Availability Zone.

Hybrid Cloud Connectivity

Use Direct Connect and NAT Gateway together for applications that need internet access as well as on-premises connectivity.

Example 1: Private Subnet Access to the Internet
A financial organization hosts sensitive workloads in private subnets and provides internet access with NAT Gateway placed in public subnets, being compliant with PCI DSS standards.

Example 2: Hybrid Cloud Architecture
A media firm operates rendering farms in private subnets, downloads heavy rendering assets via NAT Gateway, and uploads final renders to on-premises storage through AWS Direct Connect.

FAQs (Frequently Asked Questions) With Examples

1. How is AWS NAT Gateway priced?

AWS NAT Gateway charges are based on two components:

  • Per hour of NAT Gateway operation.
  • Per GB of data processed by the NAT Gateway.

To manage costs effectively, it’s recommended to reduce unnecessary data flow through the NAT Gateway, for instance by utilizing VPC Endpoints for services such as S3 and DynamoDB, which bypass the NAT Gateway and save on processing fees.

Example:
A startup significantly reduced NAT Gateway expenses by configuring VPC Endpoints for S3, avoiding data from traversing the NAT Gateway. This optimization resulted in a 30% decrease in monthly NAT Gateway data processing fees.


2. Can NAT Gateway provide high availability?

Yes. AWS NAT Gateway is highly available within a single Availability Zone (AZ). However, to ensure multi-AZ high availability, you must deploy one NAT Gateway in each AZ where you have private subnets.

Example:
A logistics company maintained zero downtime during an AZ failure by deploying multi-AZ NAT Gateways. Private subnets in each AZ used the NAT Gateway within the same zone, avoiding cross-AZ data transfer costs and reducing failover complexity.


3. How is NAT Gateway different from NAT Instance?

Feature NAT Gateway NAT Instance
Managed Fully managed by AWS Self-managed (requires admin tasks)
Scalability Scales automatically up to 45 Gbps Manual scaling (EC2 instance size/Auto Scaling)
High Availability Built-in (per AZ) Needs manual configuration (failover/Auto Scaling)
Security Patching Handled by AWS Manual patching required
Cost Structure Per hour + per GB processed EC2 instance fees + data transfer + maintenance overhead

Example:
A media streaming company replaced NAT Instances with NAT Gateway, eliminating manual patching, reducing maintenance, and improving outbound bandwidth for API calls, leading to a 50% boost in operational efficiency.


4. How can I lower AWS NAT Gateway costs?

Here are a few key strategies:

  • Use VPC Endpoints for AWS services (S3, DynamoDB).
  • Minimize cross-AZ traffic by placing NAT Gateway in each AZ and routing subnets accordingly.
  • Continuously monitor CloudWatch metrics and Cost Explorer to identify unnecessary data flows.

Example:
A retail enterprise saved over $5,000 per month by routing S3 access through VPC Endpoints instead of NAT Gateway. Additionally, they reduced cross-AZ data transfer by ensuring each AZ had a dedicated NAT Gateway.


5. Can I track NAT Gateway usage?

Yes. AWS provides CloudWatch metrics to track:

  • Data processed (bytes in/out).
  • Active connections.
  • Packets dropped due to errors.

You can also use CloudTrail logs to monitor API activity related to NAT Gateway for auditing.

Example:
An education technology company used CloudWatch to monitor data transfer volumes, detecting an unexpected spike caused by a misconfigured app. Fixing the issue reduced NAT Gateway processing fees by 20%.


6. Does NAT Gateway support IPv6?

No. AWS NAT Gateway supports IPv4 traffic only.
For IPv6, you can use an Egress-Only Internet Gateway, which allows IPv6-enabled instances in your VPC to reach the internet.

Example:
A financial services company deployed Egress-Only Internet Gateways for IPv6 communication in parallel with their IPv4 NAT Gateway, ensuring secure outbound internet access for both IP versions.


7. Does NAT Gateway support large workloads and scale automatically?

Yes. AWS NAT Gateway automatically scales to handle high bandwidth demands—up to 45 Gbps per Availability Zone. There’s no need for manual scaling or configuration adjustments.

Example:
A video streaming platform managed millions of outbound API calls per second using NAT Gateway, scaling seamlessly as customer demand increased without needing to manually adjust any capacity settings.


8. How do I secure outbound traffic via NAT Gateway?

For securing outbound internet traffic:

  • Use tight security group rules on instances in private subnets.
  • Control outbound traffic using NACLs (Network Access Control Lists).
  • Monitor traffic through CloudTrail logs and VPC Flow Logs.
  • Restrict outbound destinations using service control policies (SCPs) if operating under AWS Organizations.

Example:
A healthcare provider enforced HIPAA compliance by limiting outbound traffic to specific IP addresses and ports, ensuring only approved APIs and update services were accessible from instances behind the NAT Gateway.


9. Can I share an AWS NAT Gateway across multiple VPCs?

Not directly. NAT Gateway is VPC-specific and cannot be shared across VPCs natively. However, you can design a shared services VPC where Transit Gateway routes multiple VPCs to a centralized NAT Gateway.

Example:
A global consulting firm implemented Transit Gateway to route private traffic from multiple VPCs to a centralized shared services VPC, where a NAT Gateway handled outbound internet traffic. This design simplified governance and reduced costs by centralizing egress points.

Conclusion & Call to Action

AWS NAT Gateway is an extremely scalable, managed service that makes secure outbound connectivity for resources in private subnets easy. Whether you have sensitive workloads, are constructing multi-AZ fault-tolerant systems, or are transitioning from NAT instances, AWS NAT Gateway offers an affordable, high-performance solution.

Ready to ease your cloud network design?
Get started with implementing AWS NAT Gateway today, or reach out for a complimentary consultation on how to optimize your AWS networking approach.
