AWS VPC Networking Basics Explained

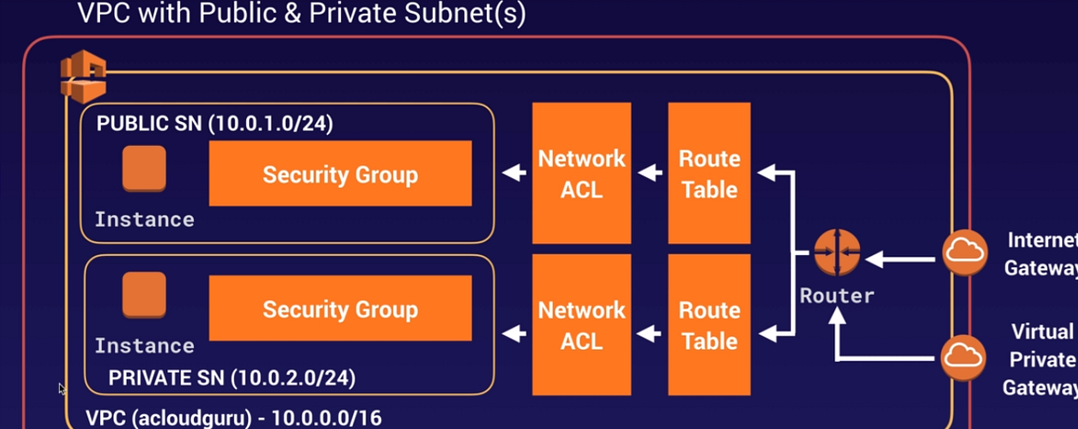

Amazon Web Services (AWS) offers a powerful feature called VPC Networking, which is essential for setting up secure and customized network configurations in the cloud. Through VPC Networking, users can isolate sections of their AWS resources, enhancing both control and security. A Virtual Private Cloud (VPC) allows you to define your own IP address range, subnets, route tables, and network gateways, ensuring that your infrastructure is aligned with your organization’s requirements. Understanding VPC Networking is crucial for setting up private and public subnets, configuring VPNs, and managing access points effectively.

IP addressing is a system used to identify devices on a network through unique numerical labels. Each device connected to a network, including the Internet, is assigned an IP (Internet Protocol) address, which allows it to send and receive data.

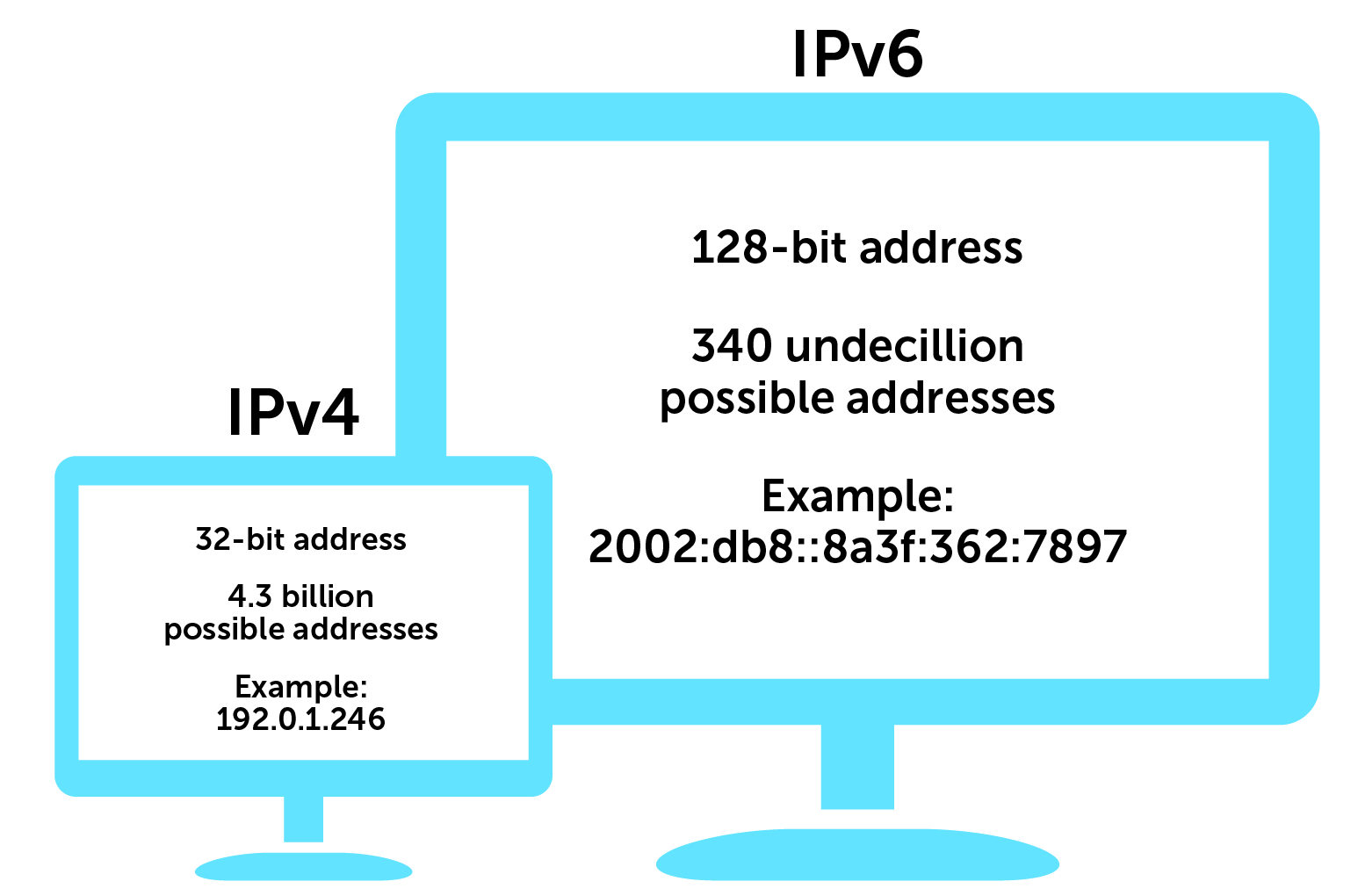

Types of IP Addresses

IPv4:

• Composed of four octets (e.g., 192.168.1.1).
• Supports about 4.3 billion unique addresses.
• Commonly used but running out of available addresses.

IPv6:

• Composed of eight groups of hexadecimal numbers (e.g., 2001:0db8:85a3:0000:0000:8a2e:0370:7334).
• Supports a vastly larger number of addresses (approximately 340 undecillion).
• Designed to replace IPv4 as the internet grows.

Address Classes (IPv4)

• Class A: 1.0.0.0 to 126.255.255.255 (Large networks)
• Class B: 128.0.0.0 to 191.255.255.255 (Medium networks)
• Class C: 192.0.0.0 to 223.255.255.255 (Small networks)
• Class D: 224.0.0.0 to 239.255.255.255 (Multicast)
• Class E: 240.0.0.0 to 255.255.255.255 (Experimental)

Public vs. Private IP Addresses

• Public IP Address: Assigned to a device directly connected to the internet; can be accessed globally.
• Private IP Address: Used within a private network; not routable on the internet (e.g., 192.168.x.x, 10.x.x.x).

Subnetting divides a larger network into smaller, manageable segments, allowing better utilization of IP addresses and enhanced security. It involves using a subnet mask to determine which portion of the IP address represents the network and which part represents the host.

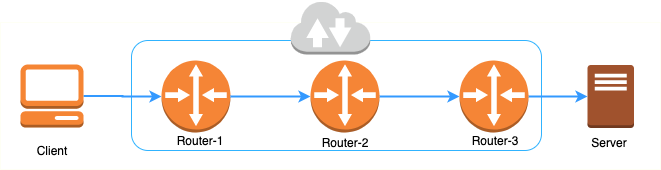

Routing is the process of selecting paths in a network along which to send data packets. It involves the use of routers, which are devices that forward data packets between different networks based on their destination IP addresses.

Firewalls are security devices or software that monitor and control incoming and outgoing network traffic based on predetermined security rules. They act as a barrier between trusted internal networks and untrusted external networks, such as the Internet.

By leveraging VPC Networking, AWS users can create secure network boundaries, separating internal resources from public ones. This feature enables administrators to manage inbound and outbound traffic through access control lists and security groups, providing advanced control over data flow. VPC Networking allows for scalable, flexible, and secure cloud architecture, which is especially beneficial for enterprises looking to migrate critical workloads to AWS while maintaining robust network security. For businesses prioritizing data protection and custom network designs, mastering VPC Networking fundamentals is a key step.
